2.4. Platform APIs

As mentioned above, MuPIF key idea is based on composing simulation workflows from a set of components with standartized interfaces. In this chapter are presented the interfaces (APIs) for all relevenat entities. The interfaces, represented as a set of methods, are defined by abstract, top-level parent classes representing core component types (such as models or data types). The interfaces are inheritted by derived classes. This ensures, that all derived classes and their instances can be managed using the same interface.

One of the key and distinct features of the MuPIF platform is that such an abstraction (defined by top level classes) is not only developed for models, but also for the simulation data. The focus is on services provided by objects and not on underlying data. The object representation of data encapsulates the data themselves, related metadata, and related algorithms. Individual models then do not have to interpret the complex data themselves; they receive data and algorithms in one consistent package. This also allows the platform to be independent of particular data format, without requiring any changes on the model side to work with new format.

In the rest of this section, the fundamental, core classes and their interfaces are presented with links to their documentation, generated directly from the source code using PyDoc package.

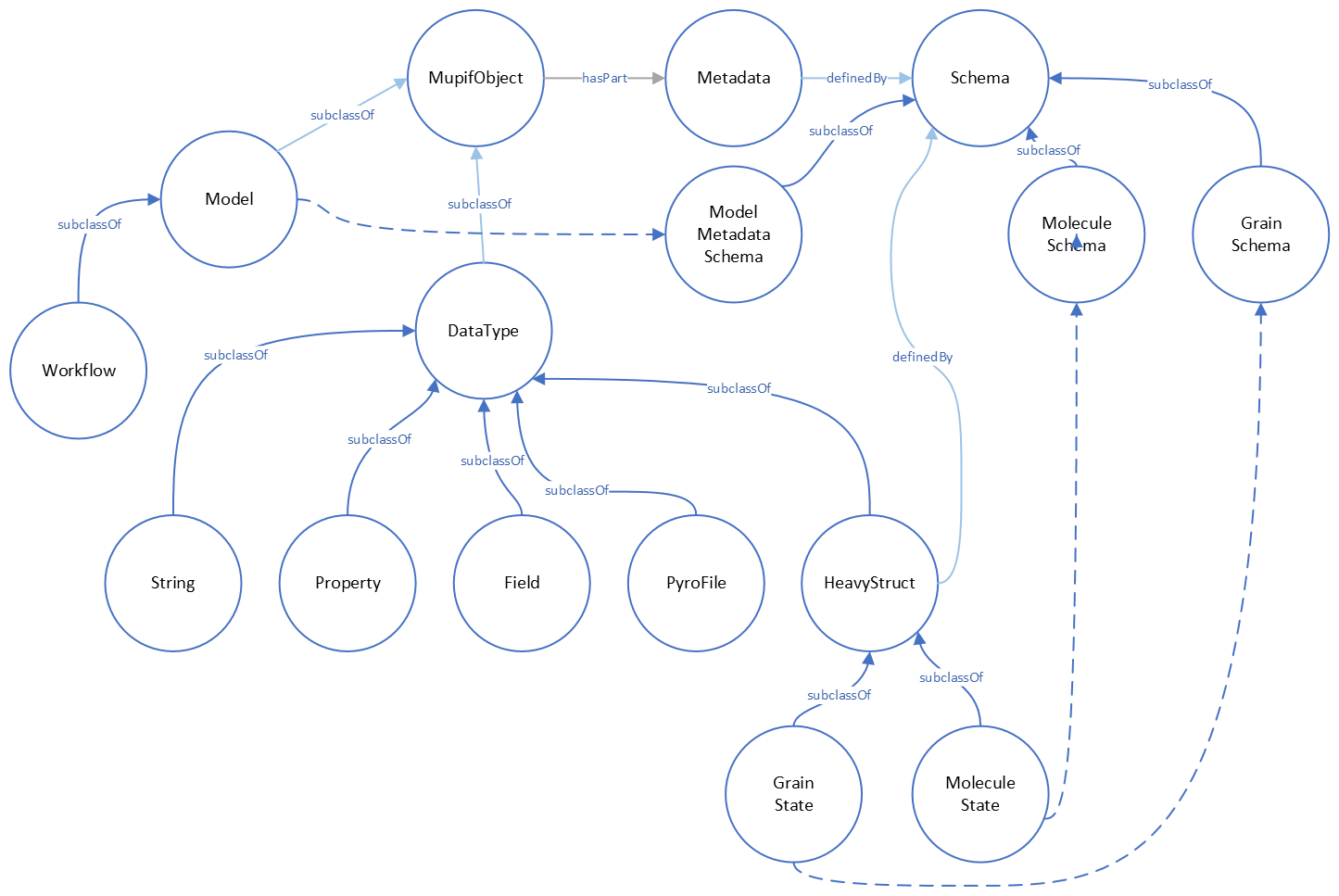

Fig. 2.2 MuPIF core classes and their relations

2.4.1. Common API

The object-oriented approach allows to define hierarchy of classes. This is also used in designing MuPIF class structure, where all component classes form a hierarchy, where on top of this hierarchy is MupifObject class. This class introduces a common interface that is then inherited by all derived classes, thus by all MuPIF components involving models (Model class), workflows, and high-level data components, such as properties or spatial fields.

The MupifObject class essentially defines methods allowing to get/set metadata to the component. The metadata are identified by unique ID and can be of any type. Internally, they are stored in internal dictionary declared by MupifObject.

2.4.1.1. Metadata and metadata schemas

The metadata and metadata schemas in MuPIF are stored in a form of JSON representations as a nested (hierarchical) dictionary. JSON stands for “JavaScript Object Notation”, a simple data interchange format. In its heart, JSON is built on the following data structures: object, array, number, string, boolean and null. With these simple data types, all kinds of structured data can be represented. The metadata structure in MuPIF is defined by the JSON schema, being a template defining what fields are expected, and how the values are represented. The advantage is that actual metadata and their structure can be validated against the schema. The JSON schema itself is written in JSON (or as Pydantic data models, exporting the schema to JSON schema syntax). The JSON schema standard can be found in [11].

As already mentioned, a schema in a Python in represented as a python dictionary, with following keys: type, properties, and required.

• The type defines the type of data. Can be any of the supported JSON types (object, array, number, string, boolean or null)

• The properties is a dictionary containing the actual metadata in the from of key-value pairs, where values in the schema are dictionaries, containing ‘type’ key defining type of property.

• The required key is an array containing required property keys.

As an example, let us consider an example of a subset of model metadata:

#Example of model schema (from Model.py)
ModelSchema = {
  'type': 'object',
  'properties': {
      'Name': {'type': 'string'},
      'ID': {'type': ['string', 'integer']},
      'Description': {'type': 'string'},
      'Material': {'type': 'string'},
      'Physics': {
        'type': 'object',
        'properties': {
          'Type': {'type': 'string', 'enum': ['Electronic', 'Atomistic', 'Molecular', 'Continuum', 'Other']},
          'Entity': {'type': 'string', 'enum': ['Atom', 'Electron', 'Grains', 'Finite volume', 'Other']}
          },
          'required': ['Type', 'Entity']
      },
  },
  'required': ['Name', 'ID', 'Description', 'Physics']
}

The following listing shows valid metadata (according to schema defined above):

# Example of valid metadata
metaData = {
  'Name': 'Stationary thermal problem',
  'ID': 'Thermo-1',
  'Description': 'Stationary heat conduction using finite elements on rectangular domain',
  'Geometry': '2D rectangle',
  'Physics': {
    'Type': 'Continuum',
    'Entity': 'Finite volume',
    'Equation': ['Heat balance'],
    'Equation_quantities': ['Heat flow'],
    'Relation_description': ['Fick\'s first law'],
    'Relation_formulation': ['Flow induced by thermal gradient on isotropic material'],
    'Representation': 'Finite volumes'
  },
}

As illustrated, metadata can contain nested data structures. It is possible to access the individual metadata entries by using convenience methods provided by any MupifObject instance. Also, it is possible to insert a new metadata entry to the structure. These methods allow to use ‘dot’ notation to access nested entries, as illustrated in the example below:

myobj.getMetadata ('Name') # returns 'Stationary thermal problem'
myobj.getMetadata ('Physics.Type') #returns 'Continuum'
myobj.setMetadata ('Physics.Representation', 'Finite elements') # change existing entry
myobj.setMetadata ('Physics.NewNote', 'My note') # add a new entry to metadata

The metadata schemata are defined in corresponding modules. In MuPIF, the metadata schemata are defined for Model, Workflow, and some other data classes. Generated documentation of the JSON schemata for selected components is available in Section 6.

2.4.2. Model class

The abstract Model class represents a model. Model is a component in general performs some operation on data, it can have input and output parameters. In terms of MODA [9] nomenclature, introduced by EMMC [10], the instances of Model class correspond to MODA models and post-processing tools, but model in MuPIF can also represent an interface to external database, for example.

The model interface is defined in terms of abstract services for data exchange and steering. Derived classes represent individual simulation models. The data exchange services consist of methods for getting and registering external properties, fields, and functions, which are represented using corresponding, newly introduced classes. Steering services allow invoking (execute) solution for a specific solution step, update solution state, terminate the application, etc.

2.4.3. Workflow class

The Workflow class represents a simulation workflow. Workflow can combine several models into a complex simulation task. The workflow definition combines (1) execution model determining, how individual models are executed and (ii) data model determining the data exchange between models and workflow I/O parameters. A key feature of Workflow class is that it is derived from Model class, so it shares the same API as Model Interface. This essentially allows to treat any Workflow as Model and allows to build a hierarchy of nested workflows.

2.4.4. Property class

Property is a data type representing a quantity, which has no spatial variation. Property is identified by PropertyID, which is an enumeration determining its physical meaning. It can represent any quantity of a scalar, vector, or tensorial type. Property keeps its value, type, associated time and an optional objectID, identifying related component/subdomain.

Property with constant value in time is represented by ConstantProperty class derived from Property.

2.4.5. Field class

Field is a data type representing a field, which is a scalar, vector, or tensorial quantity defined on a spatial domain (represented by the mupif.mesh.Mesh class, for example). The field provides interpolation services in space, but is assumed to be fixed in time (the model interface allows to request field at specific time). The field can be evaluated in any spatial point belonging to underlying domain. Derived classes will implement fields defined on common discretizations, like fields defined on structured or unstructured FE meshes, finite difference grids, etc.

2.4.6. Function class

Function class represents a component transforming given inputs to outputs. It is similar to model, but it is supposed to represent rather simple relation and not complex model. Typically, function is an object defined by mathematical expression and can be a function of spatial position, time, and other variables. Derived classes should implement evaluate service by providing a corresponding expression. The function arguments are packed into a dictionary, consisting of pairs (called items) of keys and their corresponding values.

2.4.7. TimeStep class

TimeStep class represents solution time step. The time step manages its number, target time, and time increment.

Fig. 2.3 Concept of time step in MuPIF

2.4.8. Mesh class

Mesh is an abstract representation of a computational domain and its spatial discretization. The mesh geometry is described using computational cells (representing finite elements, finite difference stencils, etc.) and vertices (defining cell geometry). Derived classes represent structured, unstructured FE grids, FV grids, etc. Mesh is assumed to provide a suitable instance of cell and vertex localizers. In general, the mesh services provide different ways how to access the underlying interpolation cells and vertices, based on their numbers, or spatial location.

2.4.9. Cell class

Cell represents a computational cell (finite element, for example). The solution domain is composed of cells, whose geometry is defined using vertices. Cells provide interpolation over their associated volume, based on given vertex values. Derived classes will be implemented to support common interpolation cells (finite elements, FD stencils, etc.)

2.4.10. Vertex class

Vertex represents a vertex. In general, a set of vertices defines the geometry of interpolation cells. A vertex is characterized by its position, number and label. Vertex number is locally assigned number (by Mesh class), while a label is a unique number defined by application.

2.4.11. BoundingBox

BoundingBox represents an axis aligned bounding box - a rectangle in 2d and a prism in 3d. Its geometry is described using two points - lover left and upper right. The bounding box class provides fast and efficient methods for testing whether point is inside and whether an intersection with another bounding box exists.

2.4.12. HeavyStruct

HeavyStruct is self-describing container for complex, hierarchical data with user-defined structure and with remote/local access. The data is described using JSON (which can be validated using JSON schema), stored next to the data. The backing storage format is HDF5 (which is hidden from the user via API). Provisions are present for ontological metadata so that each item can have ontological meaning.

2.4.13. APIError

APIError serves as a base class representing exceptions thrown by the individual components. Raising an exception is a way to signal that a routine could not execute normally - for example, when an input argument is invalid (e.g. value is outside of the domain of a function) or when a resource is unavailable (like a missing file, a hard disk error, or out-of-memory errors). A hierarchy of specialized exceptions can be developed, derived from the APIError class.

Exceptions provide a way to react to exceptional circumstances (like runtime errors) in programs by transferring control to special functions called handlers. To catch exceptions, a portion of code is placed under exception inspection. This is done by enclosing that portion of code in a try-block. When an exceptional circumstance arises within that block, an exception is thrown that transfers the control to the exception handler. If no exception is thrown, the code continues normally and all handlers are ignored.

An exception is thrown by using the throw keyword from inside the try-block. Exception handlers are declared with the keyword “except”, which must be placed immediately after the try block.
